The vertical motor is installed horizontally and is hidden behind the track. It has quiet operation and adjustable motor speed. Touch control or can be drawn by hand if power is disconnected.
Built in receiver with auto limit setting.
App integration with our Alpha Neo app.
This motor is available in 240-volts and can only be operated by the Eclipse RE701V single channel or RE703V six channel remote control.
| Rated Torque (Nm) | 2 |
| Maximum Pulling Weight (kg) | 50 |
| Running Speed (cm/sec) | 9/12/14 |
| Nominal Voltage (V) | 100-240 |
| Nominal Current (A) | 0.1 |
| Running Time | Infinity |
| Protection Index (IP) | 20 |
| Maximum Turns (turn) | Infinity |
| Weight (Kg) | 0.77 |
| Length (mm) | 332 |
| Relay or Switch Control | No |
| Charger Required | N/A |

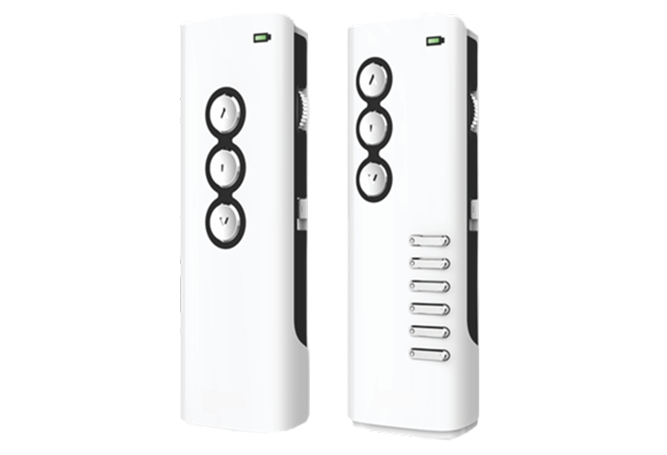

Vertical Remote Control with slide wheel to rotate blade angle.
The vertical motor is installed horizontally and is hidden behind the track. It has quiet operation and adjustable motor speed. Touch control or can be drawn by hand if power is disconnected.
Built in receiver with auto limit setting.
App integration with our Alpha Neo app.
This motor is available in 240-volts and can only be operated by the Eclipse RE701V single channel or RE703V six channel remote control.
| Rated Torque (Nm) | 2 |
| Maximum Pulling Weight (kg) | 50 |
| Running Speed (cm/sec) | 9/12/14 |
| Nominal Voltage (V) | 100-240 |
| Nominal Current (A) | 0.1 |
| Running Time | Infinity |
| Protection Index (IP) | 20 |
| Maximum Turns (turn) | Infinity |
| Weight (Kg) | 0.77 |
| Length (mm) | 332 |
| Relay or Switch Control | No |
| Charger Required | N/A |
Vertical Remote Control with slide wheel to rotate blade angle.
