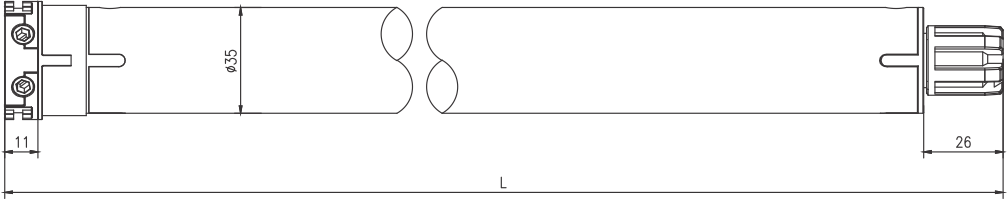

The WSEB40 5/28 is a 35mm mechanical limits motor with a built in receiver, perfect for internal roller blinds.
• Built in receiver
• Mechanical limits
• 3 core motor
| Rated Torque (Nm) | 5 |
| Speed (rpm) | 28 |
| Nominal Consumption (W) | 121 |
| Nominal Voltage (V) | 240 |
| Nominal Current (A) | 0.53 |
| Running Time (mins) | 4 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 660 |
| Maximum Turns (turn) | 27 |
| Net Weight (Kg) | 1.42 |
| INCLUDED C&D | A2310 |
| INCLUDED MOTOR BRACKET | A3304 |
