BEST CHOICE FOR AUTOMATION SYSTEM where electrically controlled 4 core motors are required.
This motor is recommended for all external straight drop awning products.
Limits may be set by using either the WSB01 limit setting tool or by using the button on the motor head.
These motors cannot be protected or controlled by Sun/Wind or Motion sensors. Any protective features must be provided by the control system operating the motors.

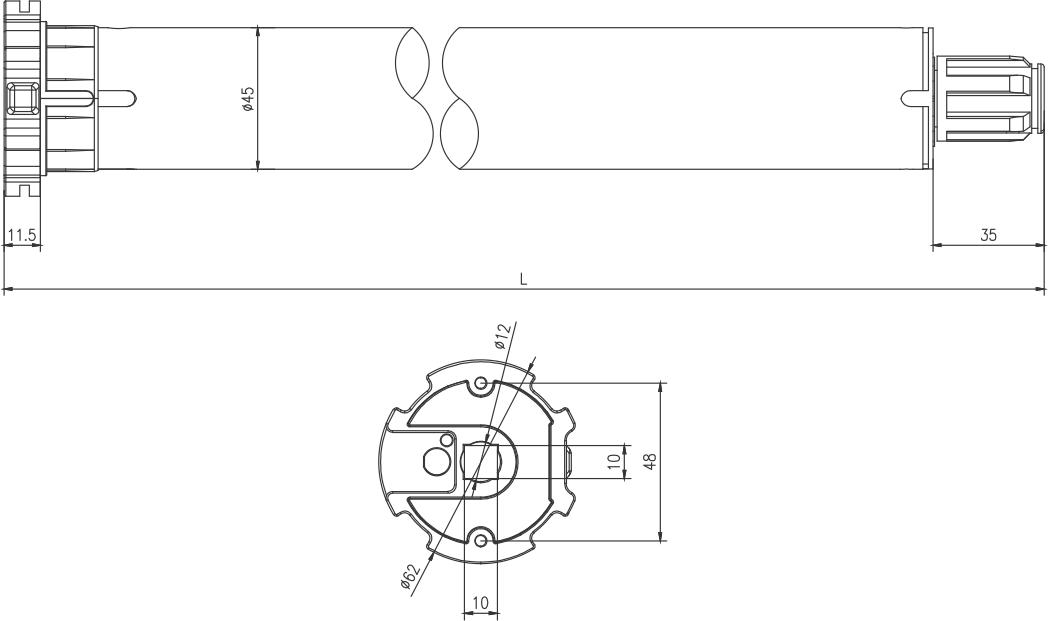

Electronic Limit Switch parallel connector motor with 45mm diameter
For use with building management systems
Parallel wiring compatible
| Rated Torque (Nm) | 30 |
| Output Speed (rpm) | 17 |
| Nominal Consumption (W) | 226 |
| Nominal Voltage (V) | 240 |
| Nominal Current (A) | 0.95 |
| Running Time (mins) | 4 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 570 |
| Maximum Turns (turn) | Infinity |
| Net Weight (Kg) | 2.20 |
| INCLUDED C&D | A2404 |
| INCLUDED MOTOR BRACKET | A3415 |
