This is a true one motor for all blinds, internal motor.
It’s reliable and delivers smooth quiet operation.
Electronic Limit Switch

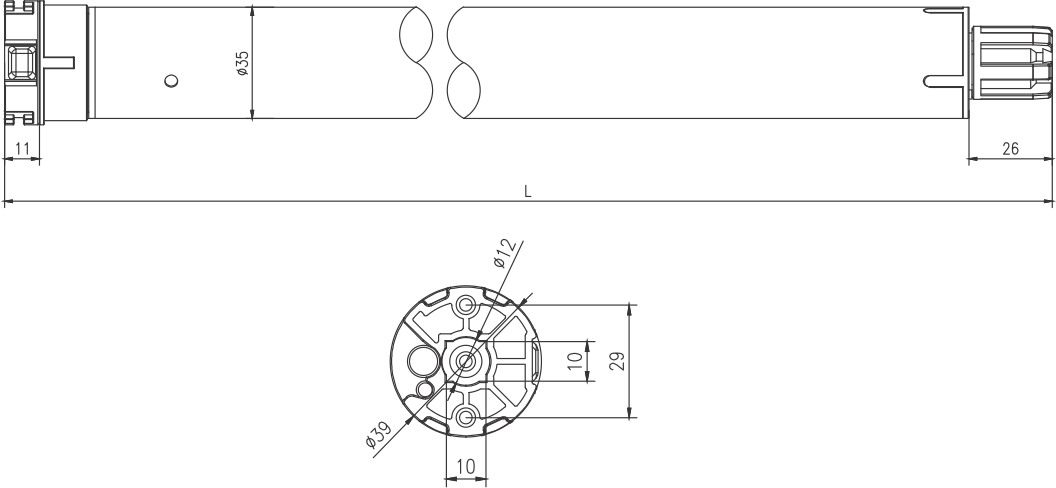

Built in receiver motor 35mm diameter
Wireless limit setting
External antenna
| Rated Torque (Nm) | 10 |
| Output Speed (rpm) | 14 |
| Nominal Consumption (W) | 116 |
| Nominal Voltage (V) | 240 |
| Nominal Current (A) | 0.49 |
| Running Time (min) | 4 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 560 |
| Maximum Turns | Infinity |
| Net Weight (kg) | 1.35 |
| Included C&D | A2310 |
| Included Motor Plate | A3304 |
