This motor is the super heavy duty version in the WSER family.
Although it’s a universal motor, it’s compatible with extra-large folding arms including the additional safety features provided by motion and wind sensors.
Due to the larger diameter of this motor, the smallest tube it can be used with is a 78mm Gal round tube with keyway, or 70mm octagonal roller shutter tube.
Electronic Limit Switch
Built in receiver

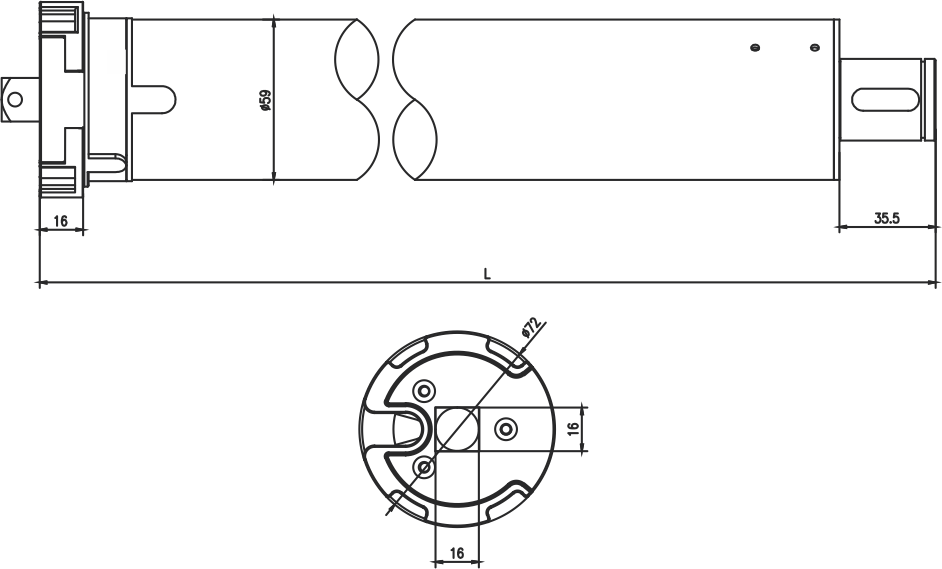

60mm diameter motor
Wireless limit setting
External antenna
| Rated Torque (Nm) | 100 |
| Output Speed (rpm) | 12 |
| Nominal Consumption (W) | 370 |
| Nominal Voltage (V) | 240 |
| Nominal Current (A) | 1.60 |
| Running Time (Min) | 4 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 685 |
| Maximum Turns (turn) | Infinity |
| Net Weight (Kg) | 5.06 |
| Included C&D | A2502 |
| Included Motor Bracket | A3006-01 |
