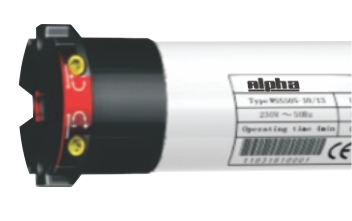

This motor is a remote control version of a mechanical limits motor, with the addition of manual override. This feature allows a roller shutter or awning to be operated by a crank handle in the event of a power failure. This feature is to allow for emergency operation only and is not suitable for general usage.
• Standard type manual override motor
• Mechanical switch
• Built in receiver
| Rated Torque (Nm) | 80 |
| Output Speed (rpm) | 12 |
| Nominal Consumption (W) | 370 |
| Nominal Voltage (V) | 240 |
| Nominal Current (A) | 1.6 |
| Running Time (Min) | 4 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 830 |
| Maximum Turns (turn) | 27 |
| Net Weight (Kg) | 6.15 |
| Included C&D | A2501 |
