Alpha’s DC 20Nm roller shutter motor is designed to lift most domestic roller shutters.
WSSD50 20/12 (2-wire) motor is to be used with the DCB003 & DCB003-R wall switch. (see here)

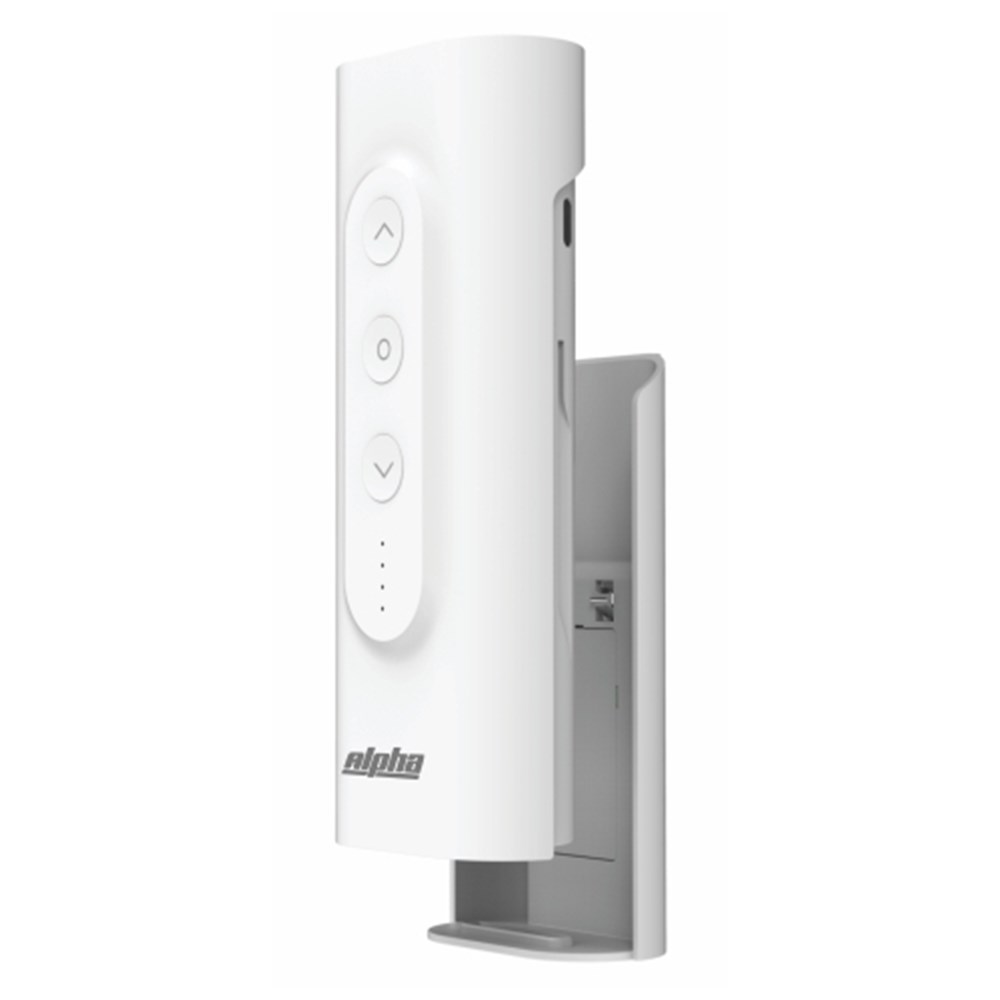

The wall switch incorporates a USB-C rechargeable battery to power the motor. Two wall switch versions are available:
DCB003 for up/stop/down control.
DCB003-R which includes a built-in receiver to allow remote control operation.
(Please Note: DCB003 Wall Switch is sold separately.)

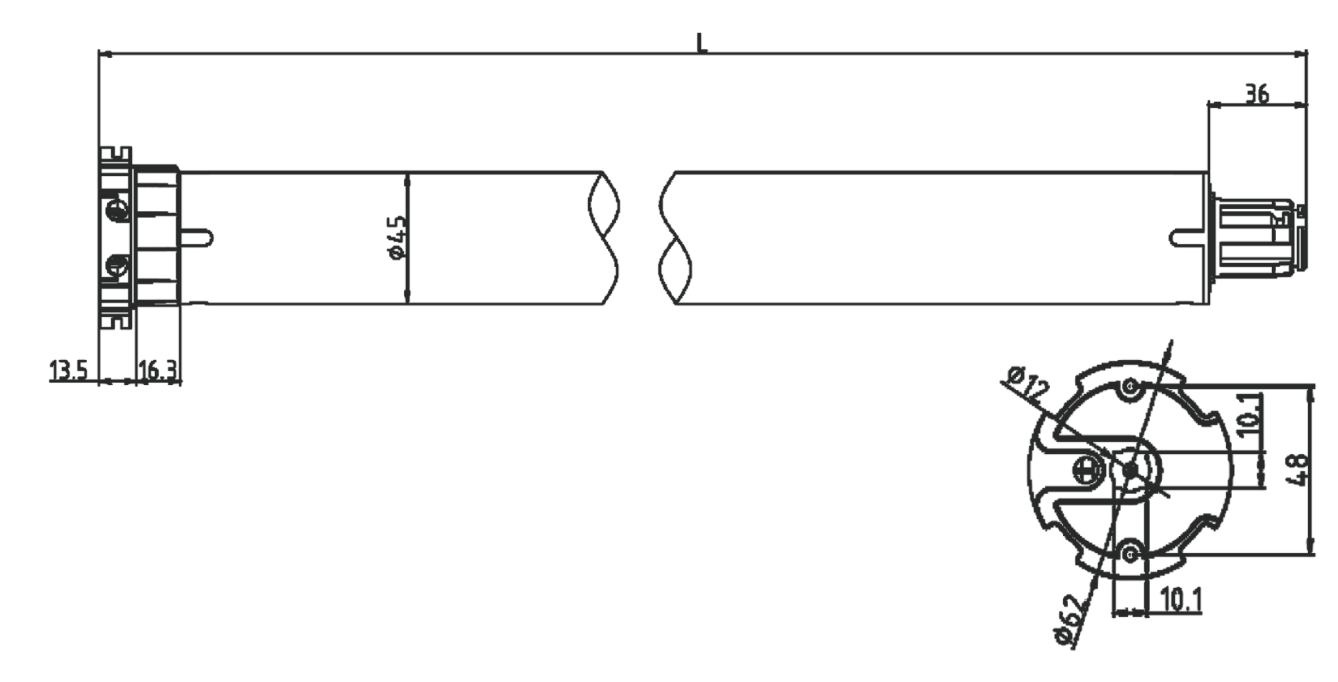

Standard type motor 45mm diameter
Mechanical switch
| Rated Torque (Nm) | 20 |
| Output Speed (rpm) | 12 |
| Nominal Consumption (W) | 84 |
| Nominal Voltage (V) | 12 |
| Nominal Current (A) | 7 |
| Running Time (Min) | 12 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 600 |
| Maximum Turns (turn) | 27 |
| Net Weight (Kg) | 1.4 |
| Included C&D | A2404 |
| Included Motor Bracket | A3415 |
